Home > products > High Voltage Coolant Heater > EVLINK 20KW 30KW Electric Coolant Heater 600V 870V High Voltage Heater Automotive For Electric Trucks

EVLINK 20KW 30KW Electric Coolant Heater 600V 870V High Voltage Heater Automotive For Electric Trucks

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: A

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $300-800 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:
Heat Output:
12-18KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
12-18KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

EVLINK High Voltage Coolant Heater Solutions

Welcome to EVLINK, where we are dedicated to providing efficient and safe High Voltage Coolant Heater (HVCH) solutions for new energy vehicles. Our B-series and A-series high voltage electric heaters have captured 70% of the Chinese thermal management heavy-duty truck market. The EVLINK high power 24kW heater has been in use since 2020, establishing our leadership in the high-power heater field.

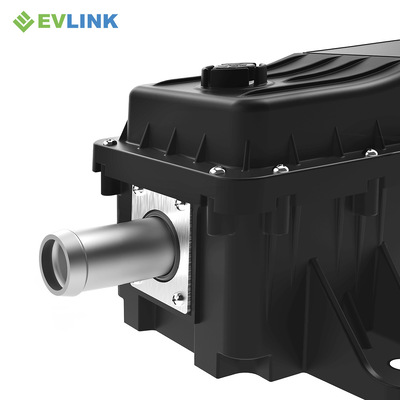

EVLINK 20KW 30KW Electric Coolant Heater  600V 870V High Voltage Heater Automotive For Electric Trucks 0



Technical Introduction

EVLINK's high voltage coolant heaters utilize ceramic insulated and PTC heating layer innovative technology. EVLINK's special structure allows PTC elements to convert more effectively into heat, with a large contact area in the finned water tank for heating the coolant. Therefore, High Voltage Coolant Heaters achieve extremely fast heating times, high precision, and maximum efficiency. The 24kW heater is the same size as the 12kW heaters on the market.

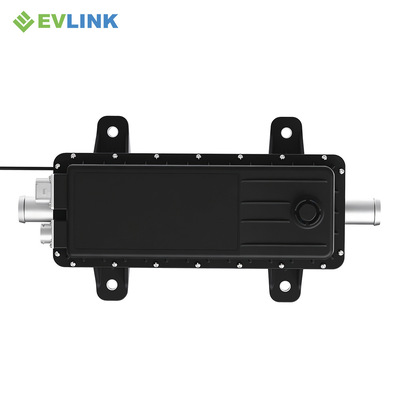

EVLINK 20KW 30KW Electric Coolant Heater  600V 870V High Voltage Heater Automotive For Electric Trucks 1

Market Position and Partnerships

In August 2023, EVLINK partnered with several well-known Chinese heavy-duty truck integrators to provide advanced 870V HVCH electric heater technology for their new electric vehicle models. This technology complements existing 600V coolant heaters, featuring enhanced electronic performance and reliable aluminum die-cast design, providing manufacturers with a dependable preheating heater in the new electrification field.

HVCH A Series Specification
Heat Output 12-18kW
High Voltage Range DC 350-900V
Low Voltage DC 24V nominal
Efficiency > 95%
Controllability Steps 100W
Weight 3kg
Heating Temperature Range -40 to 90℃
Ambient Temperature Range -40 to 125℃
Communication CAN or LIN2.1
Dielectric Strength 3500V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance >500MΩ
Service Life 10 years or 10,000 hours




Product Features

EVLINK’s coolant heaters feature a compact modular design, reducing product size and weight. They provide consistent temperature distribution in battery packs and vehicle interiors, enhancing battery energy performance. EVLINK's high voltage PTC heaters are recognized by domestic OEMs for their outstanding efficiency and performance.

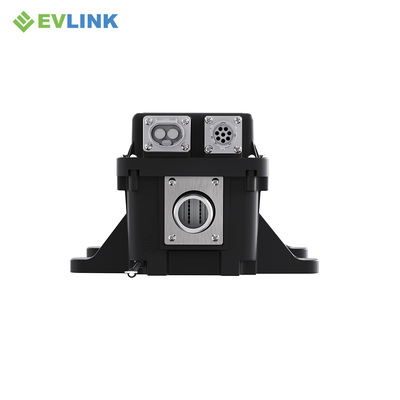

EVLINK 20KW 30KW Electric Coolant Heater  600V 870V High Voltage Heater Automotive For Electric Trucks 2



Application Scenarios

The development of new energy heavy-duty trucks is rapidly advancing. In transportation scenarios such as ports, mines, and short to medium-distance intercity routes, electric heavy-duty truck tractors are equipped with high power 24kW High Voltage Coolant Heater PTCs. These heaters enable heating functions via a single button on the air conditioning panel. PTC power is controlled according to working conditions, achieving rapid temperature rise during driving, energy-saving temperature maintenance, meeting heating needs at -30°C. At -15°C, the cabin temperature can rise to 20°C within just 5 minutes, and defogging can be completed within 90 seconds, providing a convenient driving experience.

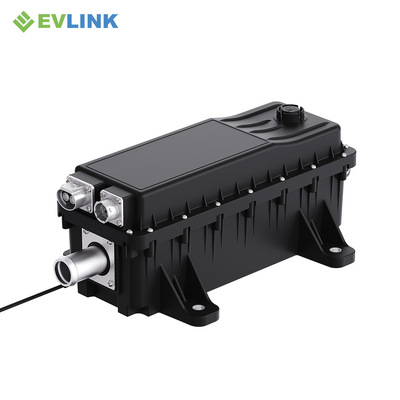

EVLINK 20KW 30KW Electric Coolant Heater  600V 870V High Voltage Heater Automotive For Electric Trucks 3



Product Advantages

  • Enhanced Heating Effect: PTC heating systems significantly improve battery heating efficiency, allowing the battery to reach the set temperature more quickly.
  • Efficient Heat Transfer: PTC heaters use gas or liquid as a heat transfer medium. Although there is some heat loss, their low thermal resistance and high heat exchange efficiency are notable.
  • Stable Temperature Control: Due to the properties of PTC materials, resistance increases as temperature rises, allowing self-regulation and temperature limitation, ensuring stable and safe temperature control.
  • Rapid Response: PTC heaters quickly respond to temperature changes, providing the required heat promptly, raising battery temperature in a short time.

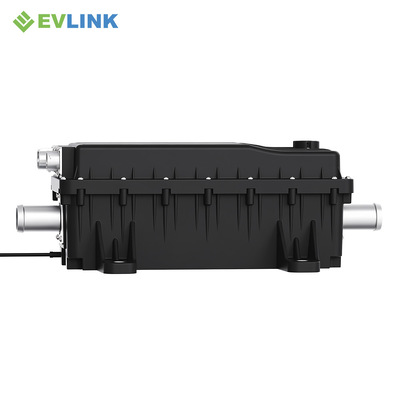

EVLINK 20KW 30KW Electric Coolant Heater  600V 870V High Voltage Heater Automotive For Electric Trucks 4

High Voltage Heater

EVLINK’s innovative technology includes ceramic insulation and PTC heating layers. EVLINK's special structure maximizes the conversion of PTC elements into heat, with a large contact area in the finned water tank for heating coolant. Therefore, High Voltage Coolant Heaters achieve extremely fast heating times, high precision, and maximum efficiency. This heater's special structure allows the 24kW heater to be the same size as the 12kW heaters on the market.

The B-series is the only heater on the market that utilizes minimal space to match independent thermal management units above 350 degrees, suitable for many buses, trucks, LCVs, and heavy-duty trucks. The electric auxiliary high voltage heater heats coolant when the temperature becomes too low and is integrated into the cooling circuit.

EVLINK’s PTC heaters are completely innovative products. Unlike trading companies, EVLINK has a very strong pre-sales technical team, professional and modern assembly lines, and production processes. We have after-sales personnel in various countries. Our main target markets include electric commercial vehicles, large battery thermal management, and HVAC cooling systems.
