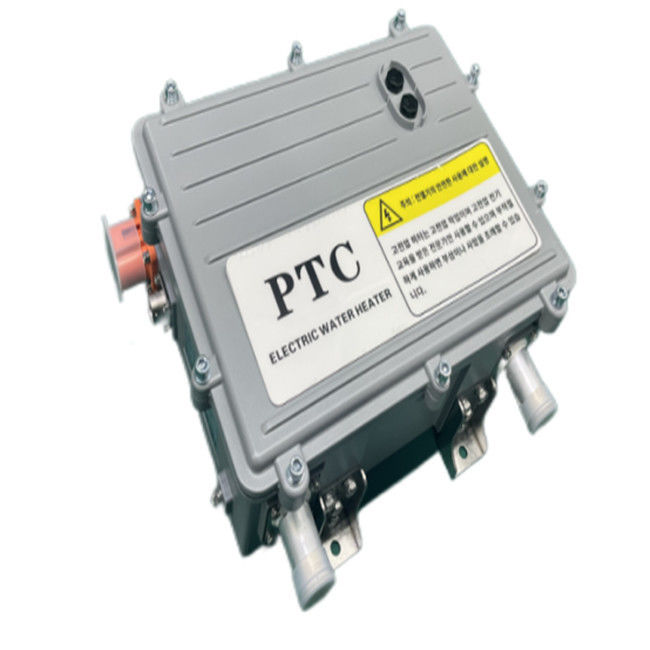

High Voltage Battery Coolant Heater Tesla

High Voltage Battery Coolant Heater Tesla
High Voltage Battery Coolant Heater Tesla High Voltage Battery Coolant Heater Tesla High Voltage Battery Coolant Heater Tesla High Voltage Battery Coolant Heater Tesla High Voltage Battery Coolant Heater Tesla

Large Image :  High Voltage Battery Coolant Heater Tesla

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

High Voltage Battery Coolant Heater Tesla

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

battery coolant heater tesla

,

tesla Battery Coolant Heater

,

Battery Coolant Heater

 HVCH QB01 Series: The Pinnacle of Innovation in High-Voltage Coolant Heaters
High Voltage Battery Coolant Heater Tesla 0

Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







High Voltage Battery Coolant Heater Tesla 1







Introduction

In the dawn of an electrified future, the QB01-Series stands at the forefront, offering unparalleled heating solutions for high-end electric buses and commercial vehicles. Harnessing the essence of "HIGH VOLTAGE FUTURE," this heater embodies the promise of swift, uniform, and trustworthy heating, ushering in a new era of energy efficiency and technological innovation.





High Voltage Battery Coolant Heater Tesla 2



Specification Highlights

  •

  • Consistent Power: The QB01-Series boasts an unwavering heat output of 30kW, adeptly catering to electric power ranges from 600V to 1100V, making it a reliable choice in varying voltage environments.

  •

  • Adaptive Control: Equipped with an integrated control unit, the QB01-Series allows for seamless heat output adjustments. This can be achieved either by modulating the water outlet temperature or by setting limits on power consumption or maximum heat, providing a tailored heating experience.

  •

  • Advanced Communication: Elevating its capabilities, the QB01-Series integrates with intelligent systems, not just as a heater but as a smart device that transmits essential operational data through an astute diagnostic function, enhancing vehicle safety and maintenance procedures.

High Voltage Battery Coolant Heater Tesla 3

Technical Specifications

  •

  • Optimized Heating: Beyond its core, the QB01-Series exhibits a remarkable 35 kW heating prowess, adjustable to cater to diverse requirements and to ensure a comfortable, warm interior in any weather conditions.

  •

  • Broad Voltage Spectrum: This series triumphs with its ability to deliver full heating capacity across a broad voltage spectrum, ranging from 450 V DC to 875 V DC, and peaking up to 1150 V DC without any dip in efficiency, setting a new benchmark in the industry.

  •

  • Connectivity: Demonstrating futuristic integration capabilities, the QB01 offers seamless connection with CAN communication channels, facilitating easy and effective vehicle system communication.



Eco-friendly Attributes



  • Emission-Free Operation: Standing firm on its commitment to fostering a green future, the QB01-Series ensures 100% emission-free heating, helping to protect our environment.

  • Quiet Functionality: Designed to operate with minimal noise, the QB01-Series eliminates the woes of disruptive exhaust fumes, providing a peaceful and comfortable environment for passengers.



Safety & Reliability



Embarking on a journey with QB01-Series means stepping into a haven of safety and reliability. A multilayered safety blueprint is at the heart of the QB01-Series, guaranteeing unswerving heating delivery without compromising on safety standards, making every journey a secure and enjoyable experience.



Why Choose QB01-Series?




  • Power & Consistency: Whether it's the comfort of the driver, passengers, or the efficiency of the battery system, the QB01-Series promises swift and steady heating, creating a harmonious balance between power and consistency.

  •

  • Peak Efficiency: The QB01-Series transcends conventional boundaries, not just about providing heat but delivering it with optimum efficiency, ensuring a performance that meets and exceeds expectations with each use.

  •
  •
