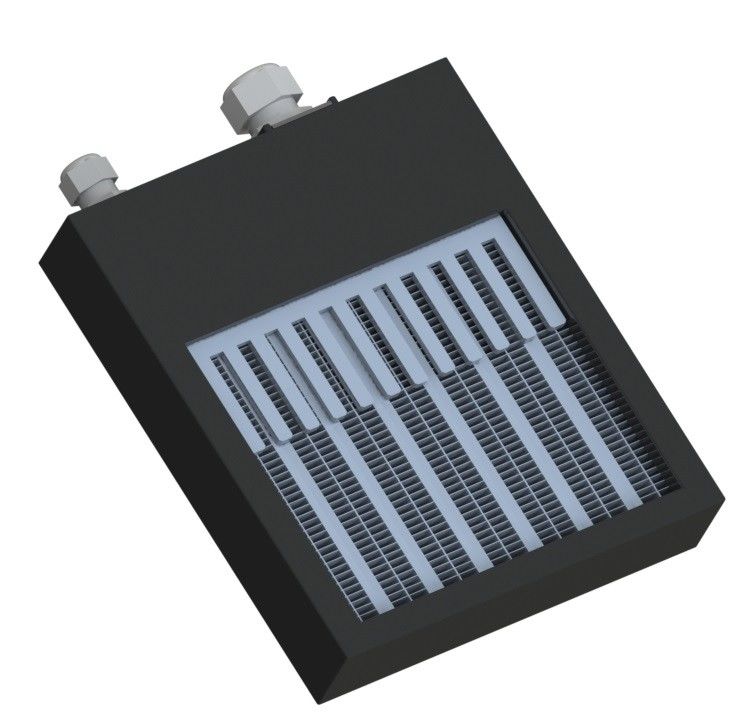

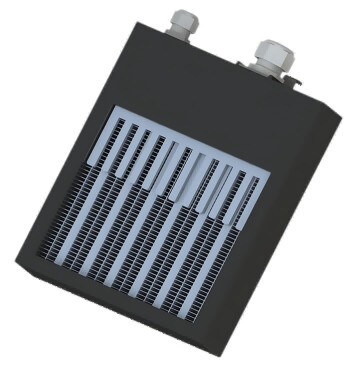

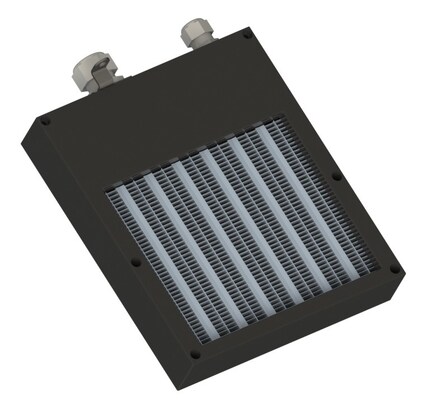

Hv Ptc Air Heater 5-5kW DC 870V With Relay And Current Fuse

Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse
Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse

Large Image :  Hv Ptc Air Heater 5-5kW DC 870V With Relay And Current Fuse

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: ER30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Hv Ptc Air Heater 5-5kW DC 870V With Relay And Current Fuse

Description
Heat Output: 2-5kW HV Voltage Range: DC 350-800V
LV Voltage: DC 24V Or 12V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: Dimensions
Weight: 3kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 2250 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

hv ptc air heater

,

Ptc Air Heater 25-35kW

,

hv air heater

  1. It is compact and lightweight, allowing for easy installation and integration into different air heating systems.
  2. The PTC Air Heater offers fast heat-up times, rapidly warming up the air to provide immediate comfort in cold environments.
  3. It is energy-efficient, minimizing power consumption and maximizing the efficiency of the air heating process.

Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse 0



HVCH QB Series is an interior heater for heating water circuits in big vehicles , it could stepless regulate performance as needed.

HVCH QB-Series could quickly, consistently,powerfully and reliably heat the vehicle interior. The compact device ensures a constantly high heat output of 25kW-35kW and allows for flexible use in a power range of 600 to 1100 Volts. HVCH QB-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.





Specification:



HVCH QB Series
Heat Output     2-5kW
HV Voltage Range     DC 350-800V

LV Voltage

  DC 24V /DC 12Vnominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     3kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     2250 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours



Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse 1

Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse 2

Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.



Ø Reliable Dual Self-Protection System

Dual protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the high voltage relay and current fuse in the high voltage circuit.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.





Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse 3



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc



        Hv Ptc Air Heater  5-5kW DC 870V With Relay And Current Fuse 4



Our service:



1. We can supply you directly, save the agent fees and reduce your cost;
2. Big order comes with big discount, trial orders are also welcome;
3. Reply your enquiry within 24 hours;
4. Price advantages:reasonable and competitive;
5. We are manufacturer and possess strong strength;
6. Do our utmost to meet your demands.





Competitive Advantage:


1. Safety and reliability
2. OEM for your design
3. Stable performance
4. Water-proof, excellent insulating property

5. Excellent dry burning resistance
6. High Voltage,High Power,High Intelligence,High Reliability
