Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
15-35KW |
HV Voltage Range: |
DC 350-900V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
15-35KW |
HV Voltage Range: |
DC 350-900V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

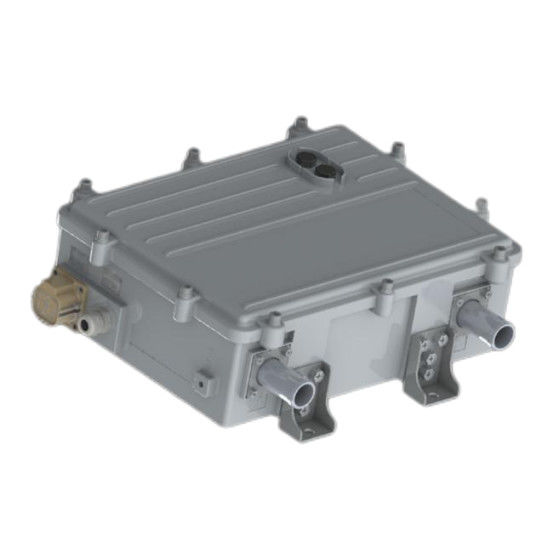

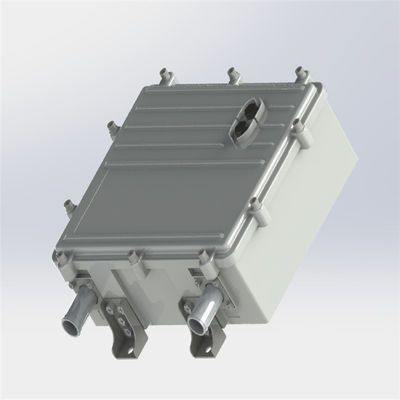

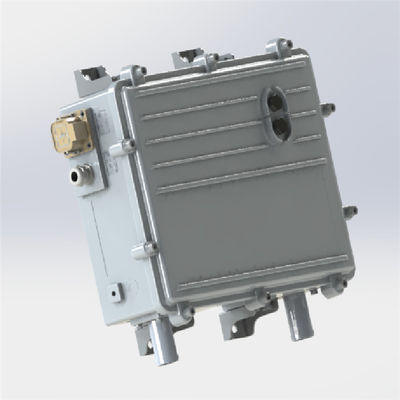

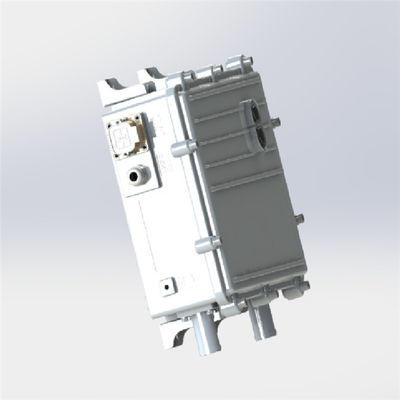

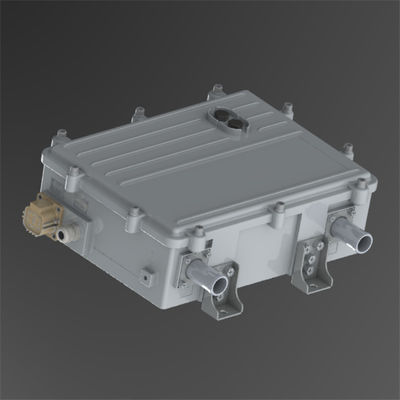

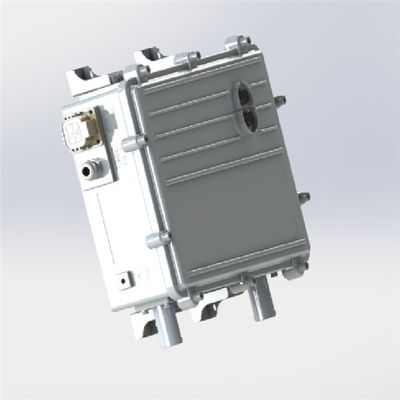

QC-Liquid heater ,A Trailblazer in Vehicle-Grade Electric Heating for Diverse Environments 30KW DC electric heater
Specification:
| HVCH QC01 Series | |
| Heat Output | 15-35kW |
| HV Voltage Range | DC 350-900V |
LV Voltage | DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |
Product Introduction
Stepping into the new era of vehicular comfort and efficiency, the EVLINK QC Series stands as a beacon of innovation. Tailored to facilitate the needs of electric and retrofit vehicles, it promises to keep the cabin temperature at a perfect balance, offering an enhanced level of comfort for drivers in various scenarios, be it during a drive or a well-deserved rest.
Specifications
Heating Power Spectrum: 15-35kW, adaptable to diverse vehicular demands.
Operational Voltage: Scaled up to 870V, fostering seamless functioning.
Customizable Technical Parameters: Developed in line with customer-specific prerequisites.
Product Features
Idle-Free Operation: Dramatically cuts down on unnecessary battery drain, promoting longevity.
Consistent Cabin Climate: Functions autonomously from other vehicle systems, safeguarding a cozy ambiance at all times.
Optimized Electrical Energy Utilization: Crafted to exploit electrical energy to its fullest potential, warranting top-notch heating efficiency.
Applications
The perfect companion for a wide range of electric vehicles and hybrid retrofit models, guaranteeing a warm and comfortable cabin ambiance during the colder months.
Our Services
Tailored Solutions: We specialize in crafting solutions that resonate with varied customer needs.
Rapid Response Framework: Engineered to offer speedy responses, maximizing customer contentment.
Global After-sales Backbone: An extensive network offering post-sales assistance on a global scale.
Competitive Advantages
Technological Brilliance: Partnering with global leaders in microchannel supply to bring forth swift and efficient heating resolutions.
Versatility in Application: A stalwart in catering to a vast array of vehicles, from pure electric models to hybrid retrofits.
Client Satisfaction at Core: Our proficient team is geared to deliver optimum solutions, fostering customer loyalty and trust.
