EVLINK Electronic Co.,Ltd 13004587611@evptc.com 86-0512-55116246
Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
15-35KW |
HV Voltage Range: |
DC 350-900V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
15-35KW |
HV Voltage Range: |
DC 350-900V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

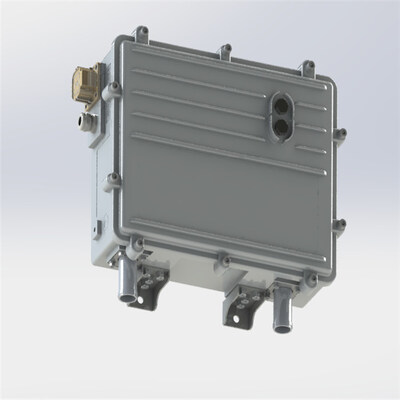

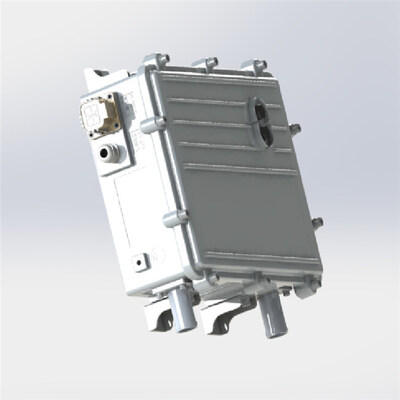

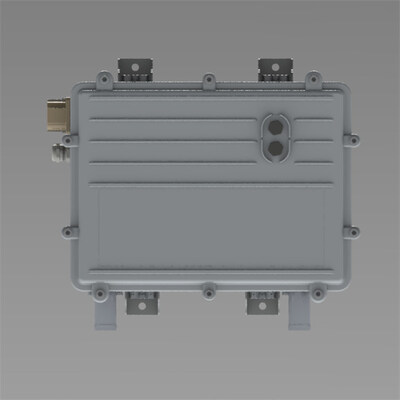

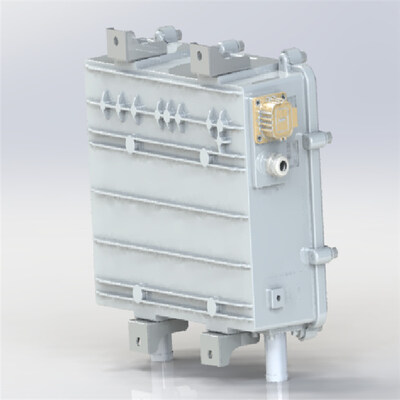

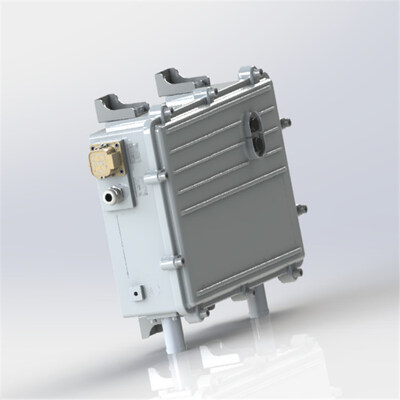

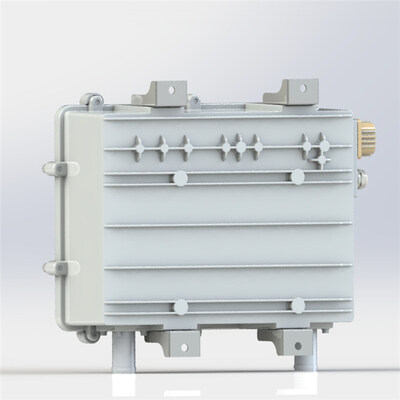

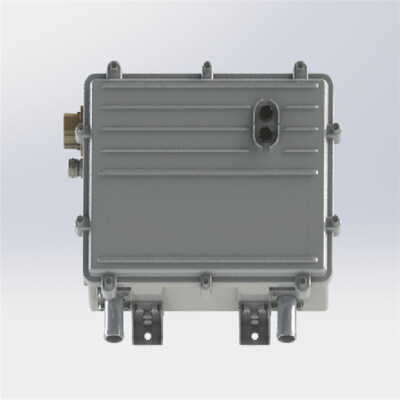

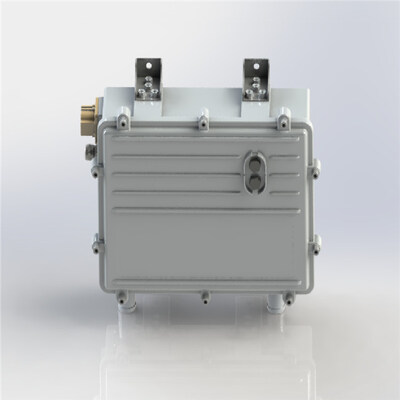

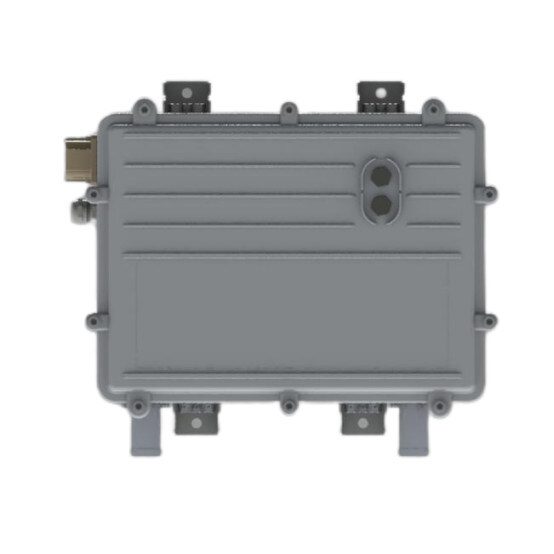

QC-Liquid heater ,Vehicle-grade Heater Adaptable to Various Scenarios DC heater with a maximum voltage of up to 1000V
EVLINK's QC series represents the pinnacle of future electric vehicle heating. Regardless of the type of vehicle you drive, this heater brings the comfort you expect. From a clear and bright windshield to a warm and cozy cabin temperature, no longer is the size of the vehicle a concern. Combined with the high-voltage interlock function and customizable heating strategy, this series truly achieves the perfect fusion of efficiency and comfort.
Specification:
| HVCH QC01 Series | |
| Heat Output | 15-35kW |
| HV Voltage Range | DC 350-900V |
|
LV Voltage |
DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |
Product Features:
Compact design, easily fitting various vehicle spaces.
Safe high-voltage interlock feature.
Heating strategy customizable based on client requirements.
High efficiency and rapid heating.
Premium aluminum casing for an elegant appearance.
Application:
The efficiency and versatility of the QC series make it the heater of choice for a range of electric vehicles, construction machinery, and large mining trucks. It ensures top-notch performance of the vehicle in varied climatic conditions.
Our Services:
EVLINK is renowned for its efficient and professional customer service, becoming the preferred choice for many engineers. We commit to offering the highest quality products and services, ensuring every customer receives a satisfying solution.
Competitive Advantage:
The standout feature of the EVLINK QC series heater is its multifunctionality and adaptability. It offers warmth to vehicles and a cozy environment to boats, positioning us as leaders in the domain.
