Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QA

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1200-1500 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

ptc heater for bus

,

vw ptc heater

,

volvo ptc heater

Heat Output:
15-25KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
15-25KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

EVLINK HVCH QA01 Series: The Unbeatable Winter Heating Solution for Korean Electric Buses



  1. The water heater is designed to operate reliably in extreme temperature conditions, ensuring consistent heating performance.
  2. It provides efficient water heating, minimizing energy waste and reducing operating costs.
  3. The High Voltage Water Heater is compatible with different power sources, including AC and DC, providing flexibility in power supply options.

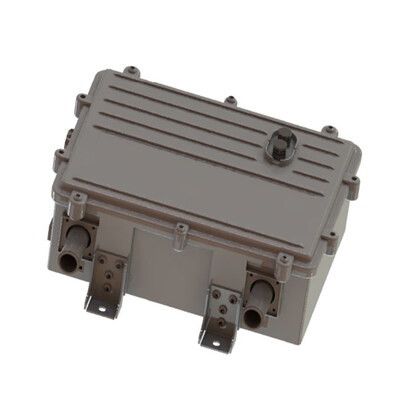

Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 0





Product Introduction:





As winter approaches, bringing with it chilling temperatures as low as -20℃, the electric buses in Korea face the inevitable question: how to maintain a comfortably warm ambiance for the passengers? The solution is none other than the EVLINK HVCH QA01 series PTC heater. This powerhouse not only guarantees a steady, reliable, and potent heat source for integrated air conditioning suppliers but has also emerged as the prime choice for heating electric buses during the harsh Korean winters, ensuring a cozy and welcoming environment on every journey.







Specification:





HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

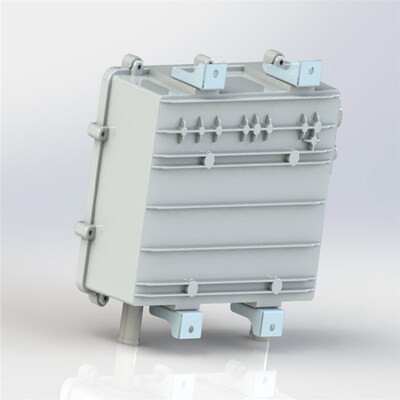

Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 1

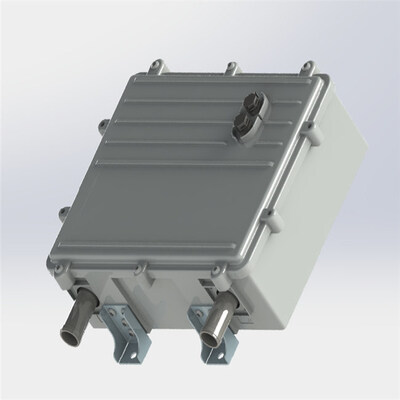

Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 2











Product Attributes





Efficient Heat Source: Furnishes an unparalleled, stable, and trustworthy heat source, catering perfectly to the needs of integrated air conditioning suppliers.



Rapid Heating: Excels in swiftly elevating the compartment's temperature, turning cold winter journeys into a snug and enjoyable experience for passengers.



Reliability and Durability: Boasts an extended operational lifespan and consistent performance, certifying the product's reliability and long-term durability.



Innovative Design: Our heaters are engineered with innovative technology, promising a seamless integration with existing systems and enhancing overall efficiency.



Environmental Adaptability: With an exceptional ability to adapt to environmental changes, our heaters offer optimum performance even in the harshest conditions.

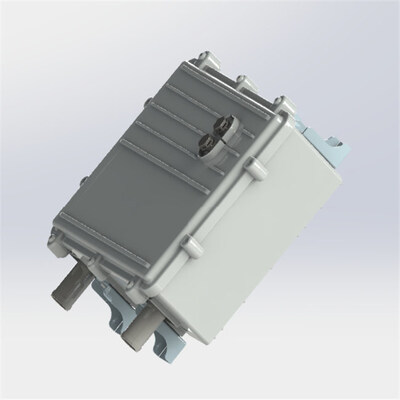

Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 3



Applications



EVLINK's PTC heaters have become a staple in Korean electric buses, particularly during the freezing winters when temperatures outside plummet to -20℃. This potent 20KW heater is proficient in swiftly raising the bus's interior temperature, creating a warm and hospitable atmosphere for passengers. Our collaboration with numerous integrated air conditioning suppliers guarantees top-notch heating solutions, making winter travels a pleasant experience for commuters.

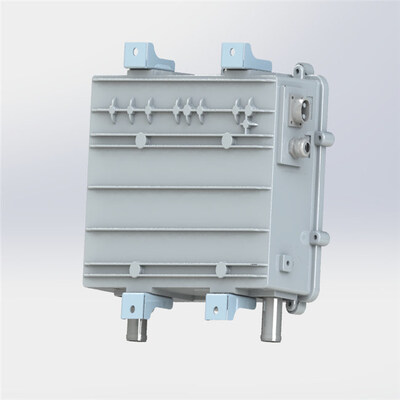

Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 4



Our Services



EVLINK's expansive service network encompasses China and Korea, and is fervently broadening its horizons, reaching new global service points. We prioritize both quality and service, ensuring our clientele receives nothing but the best. Our dedicated after-sales teams stationed at various service points frequently conduct site visits, offering training and guidance to bus operators, thus facilitating the heaters' safe, efficient, and uninterrupted functioning. Moreover, our experts continually monitor the heaters' usage status, promising unparalleled support and service for our clients, fostering a community of trust and satisfaction.



Competitive Advantages



Safety and reliability stand as the cornerstone of EVLINK's philosophy. Distinct from other suppliers in the market, we have meticulously crafted our heaters with the passengers' safety as a focal point. Our PTC heaters showcase an extraordinary capacity to operate dry for over 1000 hours without encountering any glitches or malfunctions, even in a water-deprived environment. This resilience is backed by stringent testing and certification processes, confirming adherence to all pertinent safety and performance standards. These attributes have propelled EVLINK to a venerable position, making it one of the most revered and trusted brands in the automotive heating sector.







Volvo Vw Ptc Heater For Bus Korean Electric Unbeatable Winter Heating Solution 5
