Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: AZ01
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
8-18kW |
HV Voltage Range: |
DC 350-870V |
LV Voltage: |
DC 24V Or 12V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
340*138*125mm |
Weight: |
6kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
8-18kW |
HV Voltage Range: |
DC 350-870V |
LV Voltage: |
DC 24V Or 12V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
340*138*125mm |
Weight: |
6kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

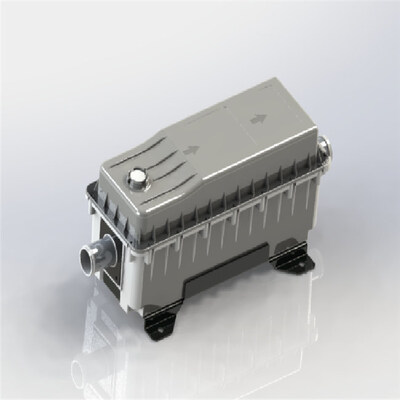

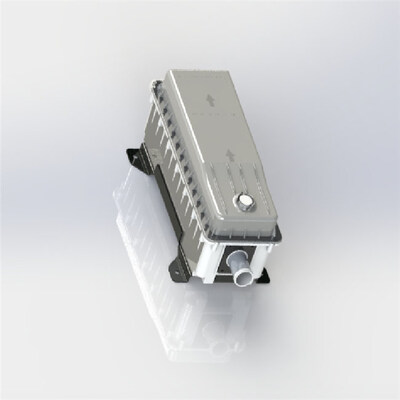

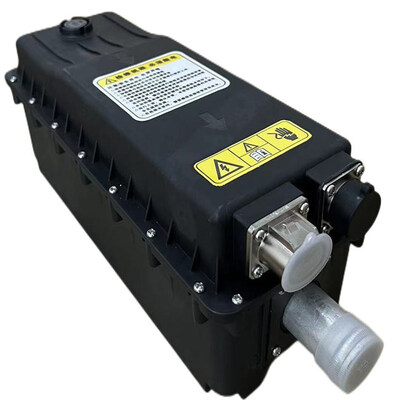

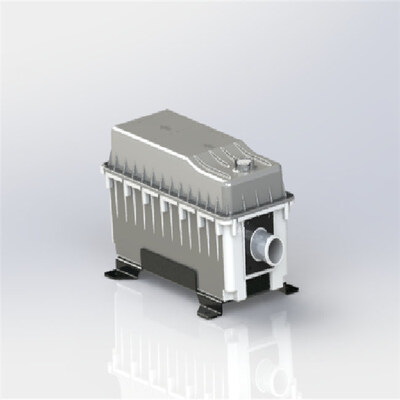

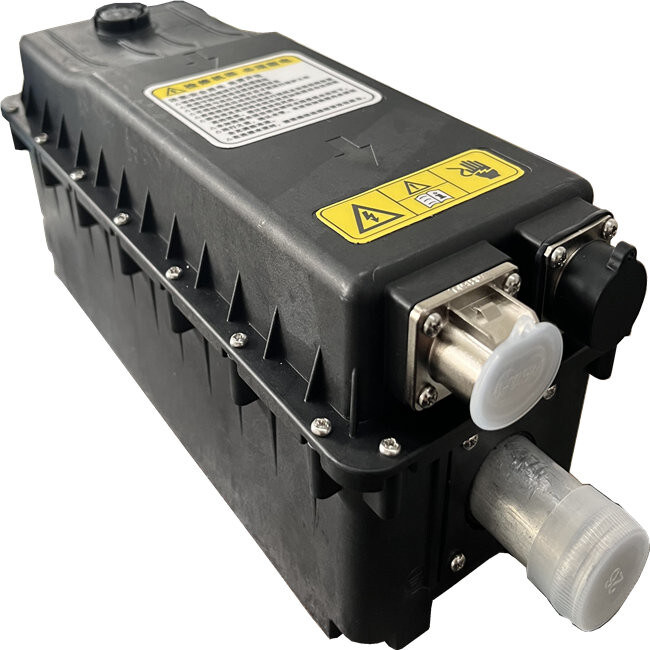

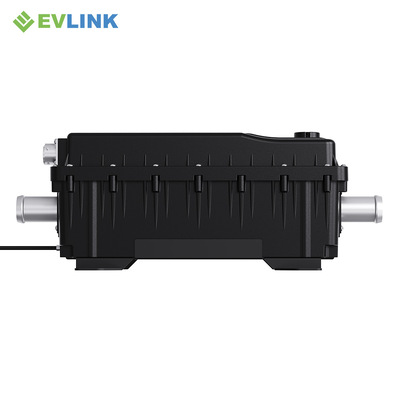

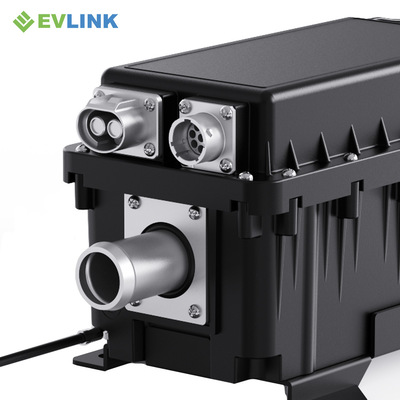

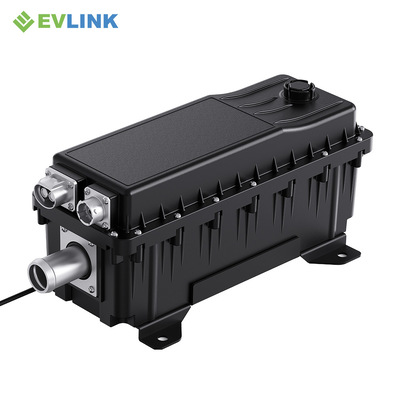

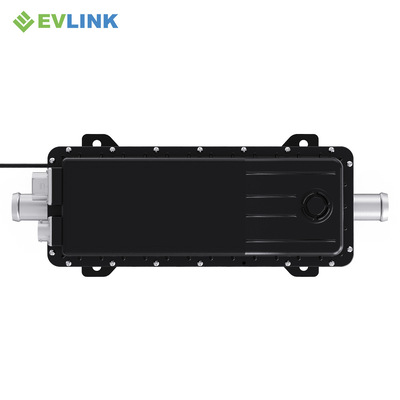

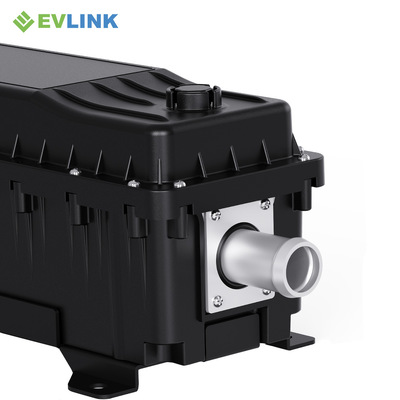

HVCH AZ01 Series
Product Introduction:
The EVLINK AZ01 Series presents an innovative direct electric water heater that holds a distinct advantage over other brands' PTC heaters. With EVLINK's structural innovation, the AZ01 series can achieve a maximum power output of 18KW, efficiently accommodating anywhere between 10KW to 18KW. Its compact size, considerably smaller than other heaters with similar power, offers vehicular layout and thermal management engineers much more flexibility when positioning the PTC heat source. This heater is anticipated to become the standard choice for adjusting interior temperatures in buses.
Specification:
HVCH AZ01 Series | |
Heat Output | 8-18kW |
HV Voltage Range | DC 350-870V |
LV Voltage | DC 24V or 12V nominal |
Efficiency | > 95 % |
Controllability Steps | 100W |
Dimensions | 340*138*125mm |
Weight | 6kg |
Temperature Range for Heating | -40 to 90 ℃ |
Temperature Range for Ambient | -40 to 125 ℃ |
Communication | CAN or LIN2.1 |
Dielectric Strength | 3500 V (DC) |
IP Protection Class | IP 67 |
EMC | ECE R10 Rev. 5 |
Insulation Resistance | >500MΩ |
Service Life | 10 years or 10,000 heating hours |
Product Features:
Application:
The AZ01 series is extensively used in buses and other large vehicles. Regardless of the season, be it cold winters or warm periods, it consistently ensures a comfortable atmosphere for passengers. Moreover, its compactness and efficient performance make it the first choice for structural engineers when placing a heat source.
