Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
20-35KW |
HV Voltage Range: |
DC 250-1100V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
20-35KW |
HV Voltage Range: |
DC 250-1100V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

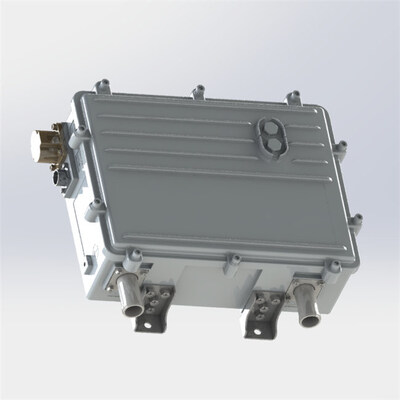

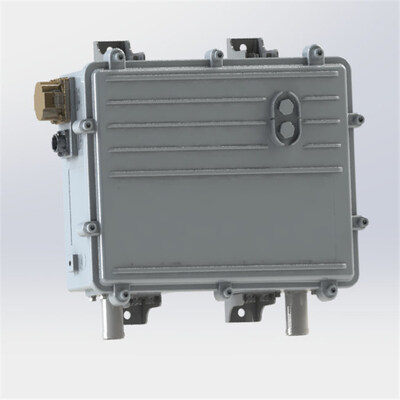

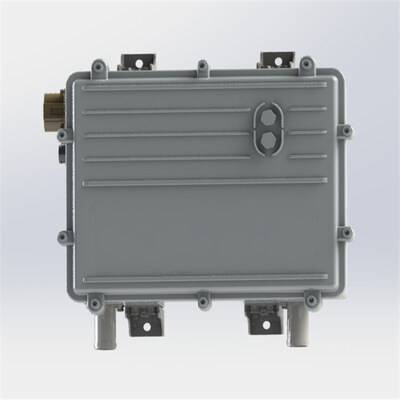

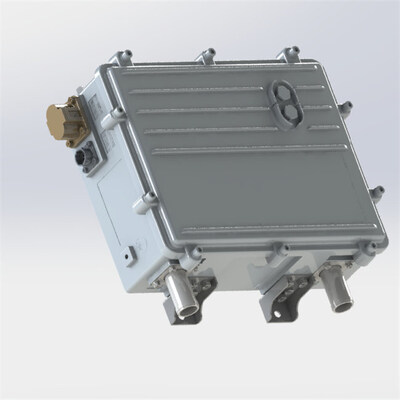

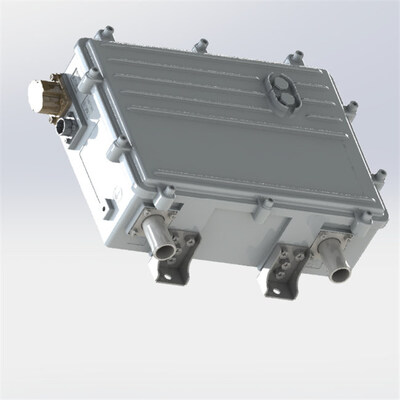

EVLINK QB Coolant Heater Series:High-Performance Automotive Grade Heater
Specification:
| HVCH QB01 Series | |
| Heat Output | 20-35kW |
| HV Voltage Range | DC 350-1100V |
| LV Voltage | DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |
Heat Output: 15-35kW
High Voltage Range: DC 350-900V
Low Voltage: DC 24V nominal
Efficiency: > 95%
Control Steps: 100W per step
Dimensions: 365313123mm
Weight: 10kg
Heating Temperature Range: -40 to 90℃
Ambient Temperature Range: -40 to 125℃
Communication Protocol: CAN or LIN2.1
Dielectric Strength: 3500V (DC)
Protection Level: IP 67
EMC Compliance: ECE R10 Rev. 5
Insulation Resistance: ＞500MΩ
Lifespan: 10 years or 10,000 heating hours
The EVLINK QB series is a high-performance PTC heater designed for modern automotive applications. After meticulous research and innovation, we successfully integrated the advantages of the two-pin Amphenol connector with the sophisticated features of the two-pin AVIC Optoelectronics connector, offering you an efficient and reliable heater.
Efficient Heating: The QB series, with its advanced PTC technology, can deliver the required heat to the vehicle in a short amount of time.
Modular Design: Offering various configuration options to cater to different vehicular needs.
High Voltage Interlock: To ensure user safety, the latest high-voltage interlock technology is employed.
Brushless Fan: Reduces noise and extends service life.
The QB Coolant Heater series is suitable not only for conventional passenger cars and commercial vehicles but also for retrofit vehicles, offering more choices and flexibility to users.
Our Services:
Provide technical design and solutions.
Offer online technical consulting and services.
Customized services to cater to specific client needs.
Competitive Advantages:
Versatility: The QB series can cater not only to the heating needs of a vehicle but also provide temperature regulation for other parts of the vehicle.
Efficiency: Compared to other brand heaters, the QB series delivers higher heating efficiency at the same power.
Safety: Our products undergo rigorous testing for safety, ensuring reliable protection under various circumstances.
Economy: The efficient heating capability means the vehicle can achieve the desired temperature in less time, thus saving energy.
