Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
20-35KW |
HV Voltage Range: |
DC 250-1100V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
20-35KW |
HV Voltage Range: |
DC 250-1100V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
＞500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

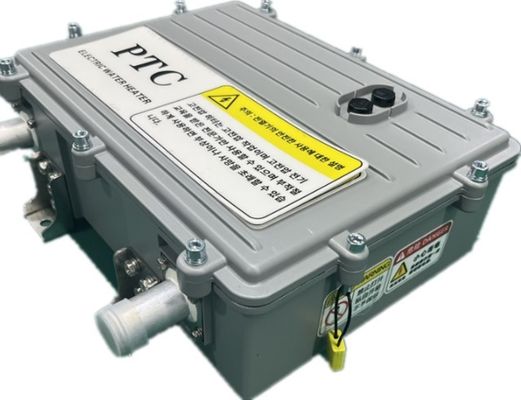

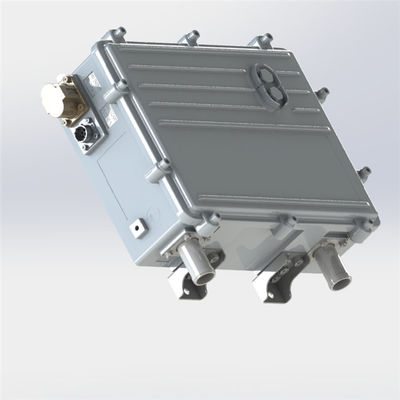

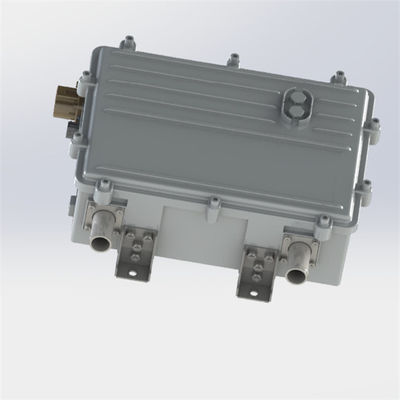

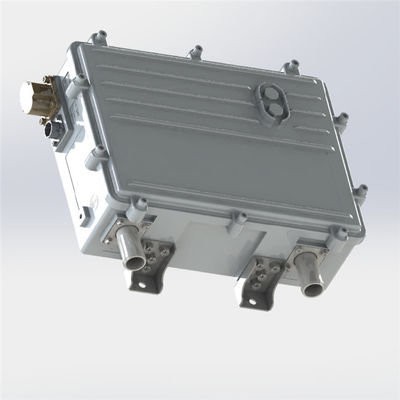

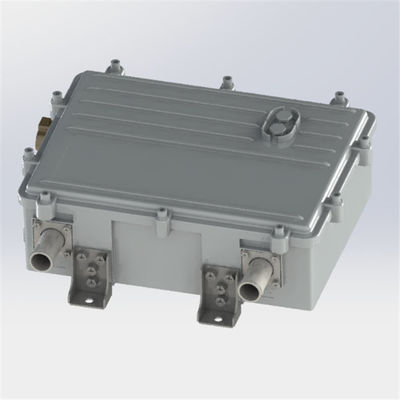

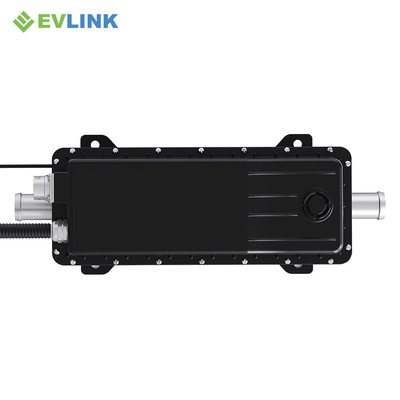

QB Series High Voltage Heater: An Efficient Solution Customized for Electric Vehicles
Specification:
| HVCH QB01 Series | |
| Heat Output | 20-35kW |
| HV Voltage Range | DC 350-1100V |
| LV Voltage | DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |
Product Introduction
The QB Series High Voltage Heater is an ideal heating system for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV). Specifically designed, this series is able to convert DC electrical power into almost lossless heat, ensuring extensive, zero-emission heating throughout the interior of electric vehicles.
Features:
Nearly achieves 100% thermal efficiency conversion.
Consistent heat output independent of coolant medium temperature and operating voltage.
Comprehensive safety architecture.
Compliant with international vehicle standards.
No initial surge or peak currents.
Quick and direct heat transfer.
Applications:
The QB Series High Voltage Heater is the main heat source for thermal management of electric vehicle batteries. In the shortest time, it raises the battery temperature from below 0°C ambient to the optimal charge-discharge temperature of 20°C, making it outstanding in the field of battery-swapping heavy trucks.
Our Services:
Offer customized technical designs and solutions.
Provide remote technical support and consultancy services.
Offer specialized technical services based on specific customer requirements.
Comprehensive factory tours and introductions.
Ensure timely delivery of samples and products.
Regularly update order status and communicate with customers.
Competitive Advantages:
Cost-effective efficiency: Combined with our efficient production process, we offer prices that match our unparalleled service.
Variety of choices: We offer products with various designs and specifications for our customers.
Professional technical team: Our team, with its vast experience and expertise, ensures the best products and services for our customers.
