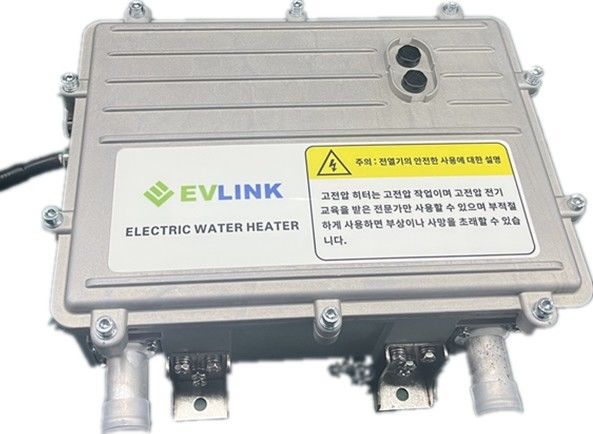

PTC Coolant Heater 20KW For Electric bus Heating system

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

PTC Coolant Heater 20KW For Electric bus Heating system

PTC Coolant Heater 20KW For Electric bus Heating system
PTC Coolant Heater 20KW For Electric bus Heating system PTC Coolant Heater 20KW For Electric bus Heating system

Large Image :  PTC Coolant Heater 20KW For Electric bus Heating system

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

PTC Coolant Heater 20KW For Electric bus Heating system

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Electrical High Voltage Coolant Heater

,

High Voltage Coolant Heater 25KW

,

Electrical Heaters







PTC Coolant Heater 20KW For Electric bus Heating system 0

  1. Introduction to EVLINK Heaters:

  2.

  3. EVLINK's heating solution represents a cutting-edge combination of relays and IGBT, ensuring a high level of safety. Designed to thrive in extreme European conditions, our heaters provide a stable heat source. The intelligent PID system optimally manages electric bus energy consumption. Through continuous technological innovation, EVLINK has collaborated with major OEMs to develop the latest global battery thermal management and cabin heating system. By optimizing the heating logic, our coolant heaters elevate battery core temperature and create a warm climate for passengers.

  4.

  5. PTC Coolant Heater 20KW For Electric bus Heating system 1

  6. Product Attributes:

  7.

  8. EVLINK's coolant heaters boast an IP67 rating, supporting technical compatibility with multiple languages. Our dedicated team formulates heating solutions independently, ensuring top-notch quality. The EMC certificate validates our commitment to delivering high-performance heaters.

  9.
  10. Applications:

  11.

  12. In early 2024, EVLINK solidified strategic partnerships with leading OEMs. Proudly, we customized a semi-automatic production line for QA coolant heaters, aligning with the highest standards of the Chinese automotive industry's Maes system. This substantial enhancement in production and quality capabilities positions us to serve future markets with the utmost dedication.

  13.
  14. Service and Competitive Edge:

  15.

  16. At EVLINK, we take pride in our commitment to quality. Our service extends beyond delivering exceptional products; it encompasses a comprehensive approach to customer satisfaction. With a focus on customer needs, EVLINK strives to set industry benchmarks for service excellence. Our competitive advantage lies in our unwavering commitment to innovation, product quality, and customer-centric service. As we look towards the future, EVLINK stands ready to meet the evolving demands of the market with unparalleled dedication and expertise.

PTC Coolant Heater 20KW For Electric bus Heating system 2



Specification:



HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours
